Associating Redmine Projects with Construct Workspaces

This guide provides step-by-step instructions for creating an association between a Redmine project and a Construct Workspace, along with troubleshooting common issues.

Process Overview​

This process establishes an association between a Redmine project and a Construct Workspace to enable seamless integration and issue tracking.

Process Output​

The output of this process is a successful association between the selected Redmine project and the Construct Workspace.

Process Inputs​

The process requires:

  • Construct version v1.0.9 or higher.
  • A pre-configured Redmine instance for Construct.
  • A valid Redmine API access key stored in the Construct tool under the user's profile performing this process.

Refer to the Redmine integration documentation for:

  1. Configuring a Redmine instance.
  2. Setting the Redmine API Access Key in Construct.
  3. Creating an association between a Redmine project and a Construct Workspace.
  4. Using Redmine within Construct.

Process Roles​

Administrator

Process Activities​

Introduction​

To associate a Redmine project with a Construct Workspace, you must log in as a super administrator in the Construct tool.

warning

Some Redmine API endpoints require Redmine Administrator access. Ensure the API access key belongs to a Redmine Administrator and not a standard user.

Steps to Associate Redmine Project with Construct Workspace​

  1. Navigate to the Configuration Page

    • Go to the Configuration page in Construct.

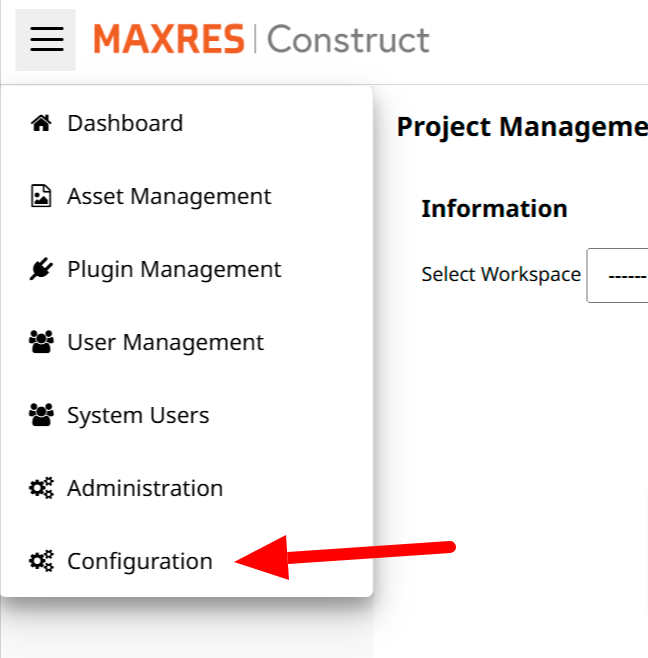

    Configuration Page Figure 1: Navigating to Configuration page

  2. Open Project Management Settings

    • Click on Project Management to open the settings for associating Redmine projects.

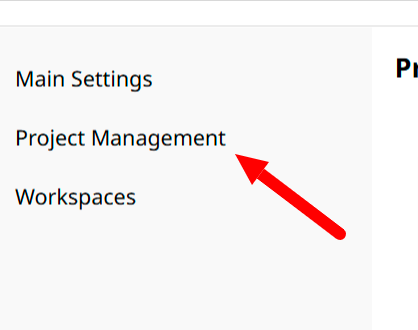

    Project Management Settings Figure 2: Navigating to Redmine settings

  3. Select a Workspace

    • Choose the Construct Workspace to associate with a Redmine project.

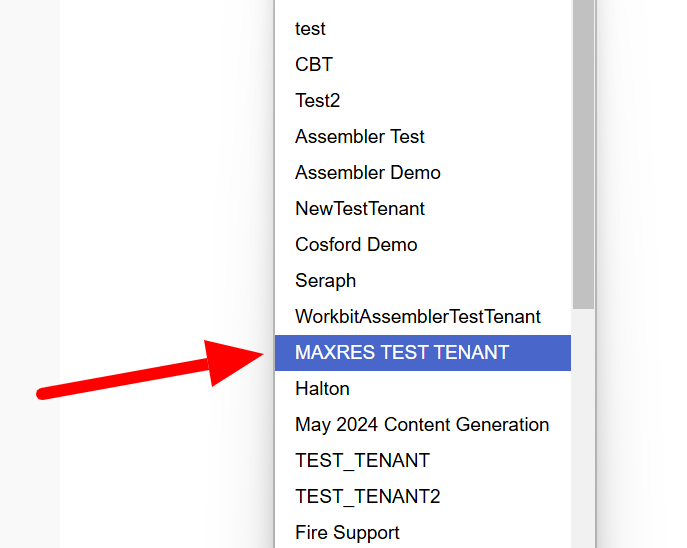

    Selecting Workspace Figure 3: Selecting Workspace

  4. Enter Redmine Instance URL

    • Input the URL of the Redmine instance in the Redmine Instance field.

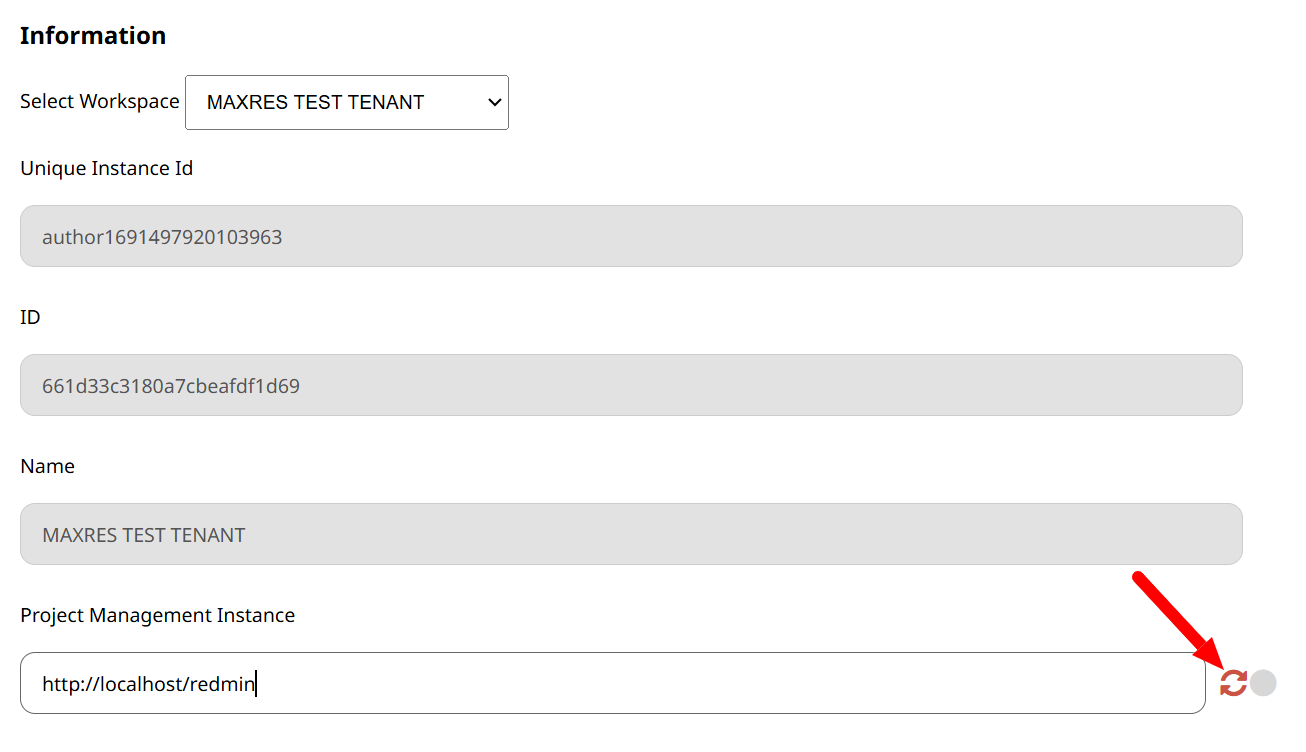

    Redmine Instance URL Figure 5: Indicating Redmine instance URL

  5. Load Redmine Projects

    • Click the Refresh button to load available Redmine projects.

    Available Redmine Projects Figure 6: Available Redmine projects

  6. Select a Redmine Project

    • Click the Select button for the desired project to associate it with the Workspace.

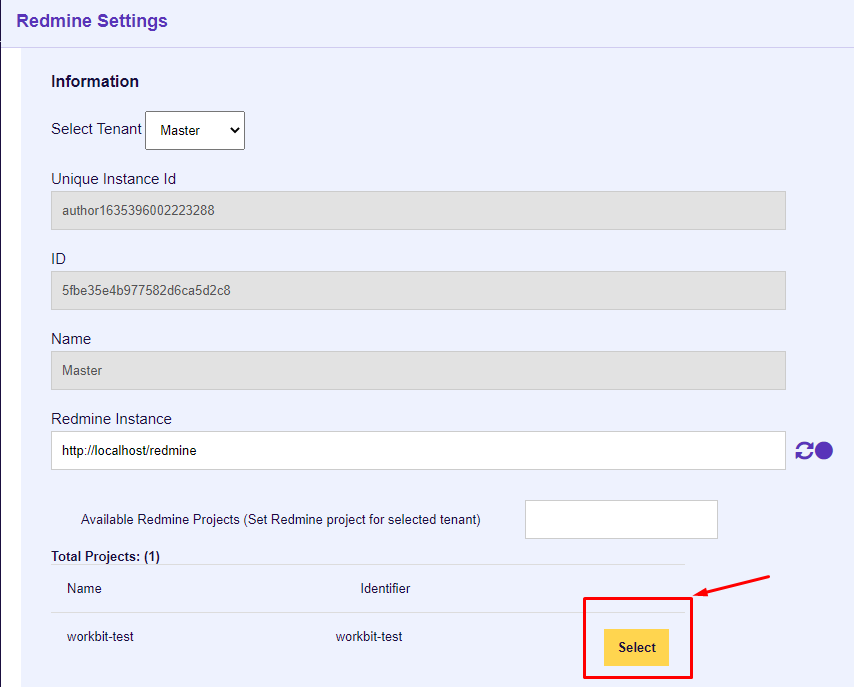

    Selecting Redmine Project Figure 7: Selecting Redmine project

  7. Configure Trackers and Permissions

    • Configure the following in the rendered configuration view:
      • Content Tracker: Tracks issues for content items (e.g., pages, articles).
      • Course Tracker: Tracks issues for courses and allows setting statuses (e.g., Content Review, Transferred).
    • Set read and create permissions for each tracker by user role.

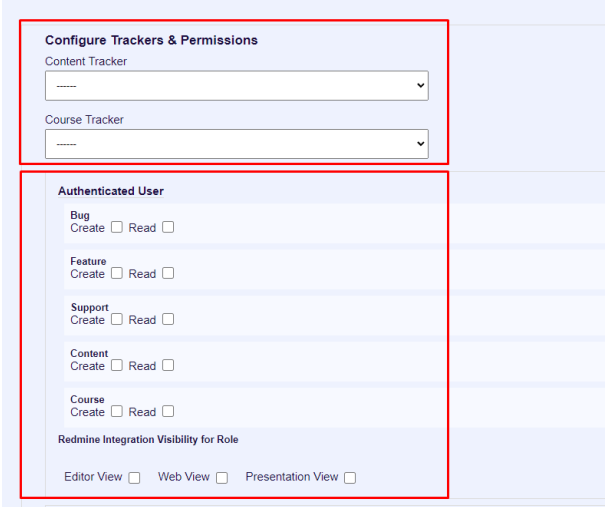

    Tracker Configuration Figure 8: Redmine Tracker configuration

  8. Set Project Memberships

    • Review and update project memberships as needed.

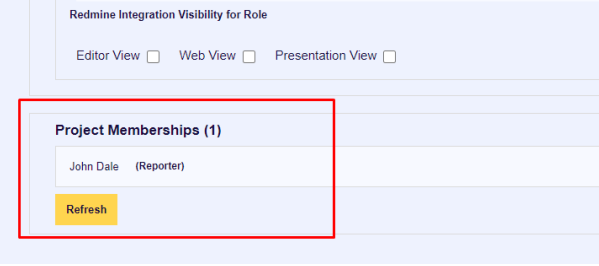

    Project Memberships Figure 9: Redmine project memberships

  9. Update Configuration

    • Click the Update button to save the settings.

    Updating Configuration Figure 10: Updating Redmine configuration

Troubleshooting​

Common Issues and Resolutions​

  1. Not Found Message

    • This may indicate an incorrect Redmine instance URL. Verify the URL.

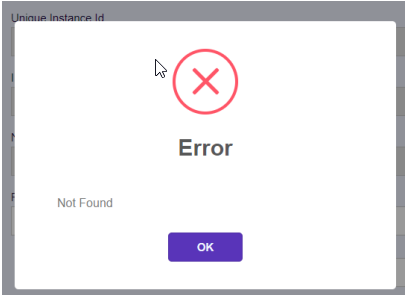

    Not Found Message Figure 11: Not Found message

  2. Failed to Fetch Message

    • Indicates a CORS issue preventing requests to the Redmine instance from the Construct domain.

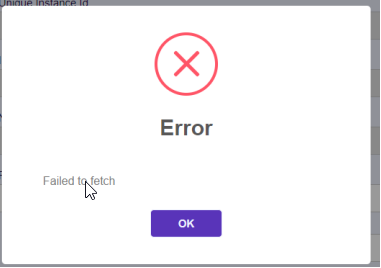

    Failed to Fetch Message Figure 12: Failed to fetch message

  3. Auth Key Error (401)

    • This indicates the Redmine API key is incorrect or lacks access to required endpoints. Verify the key and permissions.

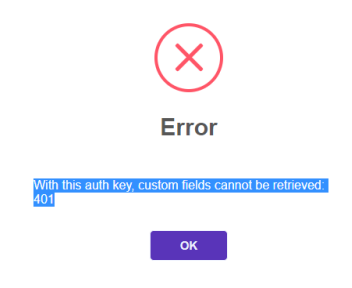

    Auth Key Error Figure 13: Auth key error

  4. Forbidden Error

    • The API key is valid but lacks administrative permissions. Assign administrator access to the API key owner.

    Forbidden Error Figure 14: Forbidden error message
